Compact drivers 230V Constant Voltage 60W 24V
€74,52 Incl. tax €149,04 Incl. tax. Out of stock, but available
Specifications
Information

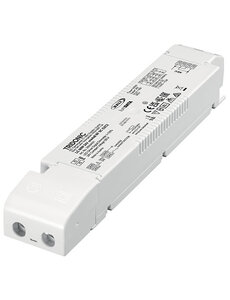

LED Driver – LC 60W 24V one4all NF SC EXC2
Product Description Art. No.: 28004431
The Tridonic LC 60W 24V one4all NF SC EXC2 is a high-quality, compact and dimmable constant voltage (CV) LED driver designed for powering flexible 24V LED strips. Equipped with a one4all interface, it supports multiple dimming methods including DALI-2, DSI, switchDIM, and corridorFUNCTION. The driver is also NFC programmable and supports lumDATA (DALI-2 extensions 251, 252, and 253).
It can be used as a built-in or independent device, and is supplied with a clip-on strain relief in both packaging options. It is also suitable for emergency lighting systems according to EN 50172 and offers a nominal lifetime of up to 50,000 hours.
Important note: This driver is IP20-rated and must not be covered. Ensure proper ventilation and follow the installation guidelines in the datasheet for safe and optimal operation.
Technical Specifications
- Input voltage: 220 – 240 V AC
- AC voltage range: 198 – 264 V
- Mains frequency: 0 / 50 / 60 Hz
- Typical input current (230 V, full load): 288 mA
- Inrush current (peak / duration): 18.8 A / 15 µs
- Max. input power: 65.4 W
- Stand-by power consumption: typ. 0.45 W
- Output power: 6 – 60 W
- Output voltage: 24 V constant voltage
- Max. output voltage (U-OUT): 60 V
- Output voltage tolerance: ±2 V
- LF ripple (< 120 Hz): ±8 %
- Dimming range: 1 – 100 %
- PWM frequency: ~ 1000 Hz
- Efficiency at full load: typ. 92.2 %
- Power factor (λ): max. 0.99 / min. 0.56 C
- THD (at 230 V): < 6.5 %
- Start-up time (AC): ≤ 0.6 s
- Start-up time (DC): ≤ 0.3 s
- Switchover time (AC/DC): ≤ 0.3 s
- Turn-off time: ≤ 0.02 s
- Dimensions (L x W x H): 225 x 43 x 30 mm
- Type of protection: IP20, SELV, Protection class II
- Lifetime: up to 50,000 hours
- Warranty: 5 years (see conditions on Tridonic.com)
- Country of origin: Austria
Interfaces & Connections
- one4all interface: DALI-2, DSI, switchDIM, corridorFUNCTION
- NFC: for wireless configuration
- Terminal blocks: 45° push-in terminals for easy wiring
- Dual output terminals (+/–): for added wiring flexibility
Typical Applications
- Ambient and decorative lighting
- Cove lighting and indirect ceiling illumination
- Façade accent lighting
- Emergency lighting systems according to EN 50172
