Compact drivers 230V Constant Voltage 18W 24V
€46,19 Excl. tax
€92,38 Excl. tax
€55,89 Incl. tax €111,78 Incl. tax. Out of stock, but available
€55,89 Incl. tax €111,78 Incl. tax. Out of stock, but available
Dimmable 24V LED driver, 18W, constant voltage (CV) with 230Vac input voltage. Features one4all interface (DALI-2, DSI, switchDIM, corridorFUNCTION), NFC programmable, emergency lighting compatible, IP20. Read more
Specifications
Brand:
Tridonic
Housing:
Remote housing
Input voltage:
230Vac
DALI Type:
DT8
DALI-2 certified:
Yes
Article number:
28004429
EAN:
9006210797175
SKU:
85044095
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

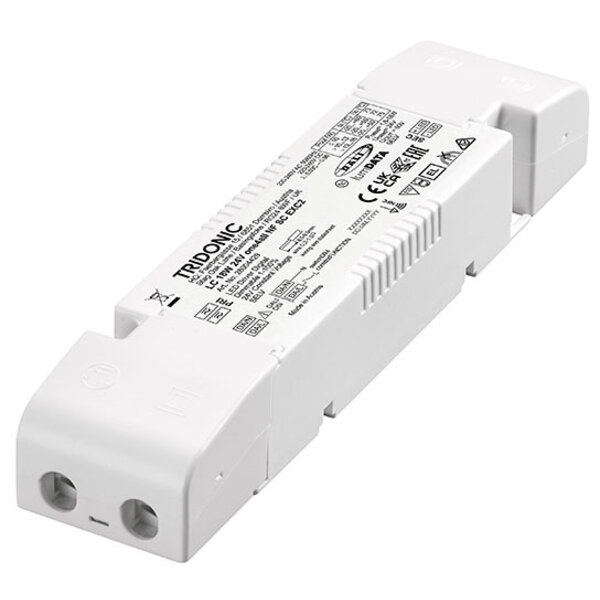

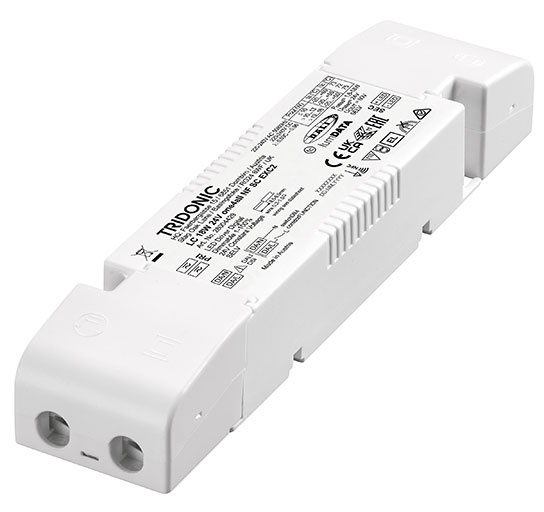

LED Driver LC 18W 24V o4a NF SC EXC2
Product Description Art. No.: 28004429
The Tridonic LED driver 24V 18W is a dimmable constant voltage (CV) driver with an input voltage of 230Vac. Ideal for LED strips and decorative lighting. Thanks to the one4all interface (DALI-2, DSI, switchDIM, corridorFUNCTION) and Near Field Communication (NFC), it is highly flexible and easy to configure.
Suitable for use in emergency lighting systems according to EN 50172 and equipped with an IP20 rating.
Technical Specifications
- Input voltage: 230Vac
- Output voltage: 24V
- Output power: 1.8 - 18W
- Dimming range: 1 - 100%
- Interfaces: DALI-2, DSI, switchDIM, corridorFUNCTION
- Near Field Communication (NFC): Yes
- Protection class: IP20
- Nominal lifetime: Up to 50,000 hours

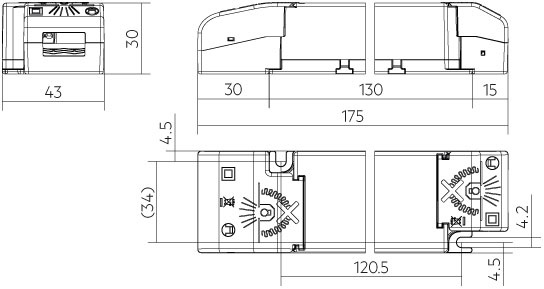

- Dimensions (LxWxH): 175 x 43 x 30 mm
- Max. output voltage: 60V
- Efficiency (at 230V, 50Hz, full load): 86%
- Total Harmonic Distortion (THD): 10%
- Surge protection: 1kV (L-N)
- Standby power consumption: 0.45W
- Inrush current (peak/duration): 12.6A / 10µs
- Warranty: 5 years
Applications
Suitable for decorative and functional lighting, such as cove lighting, façade accent lighting, and emergency lighting.
Note
When used with external light sources, it is recommended to test the dimming function at low levels to ensure compatibility.
