Constant Current LED driver 230V input 100–400mA CC

Name: Tridonic Constant Current LED driver 230V input 100–400mA CC
Brand: Tridonic
Price: 29.40 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€29,40 Excl. tax €58,80 Excl. tax
€35,57 Incl. tax €71,15 Incl. tax. Out of stock, but available

Unit price: €29,40 / Piece

Compact LED driver with NFC and DALI-2, adjustable current (100-400 mA), dimmable (1-100%), max. 14W output, up to 83% efficiency, IP20 housing. Read more

Specifications

Brand:

Tridonic

Housing:

Surface-mounted housing

Input voltage:

230Vac

DALI Type:

DT6

DALI-2 certified:

Yes

Article number:

28004041

EAN:

9006210778815

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

LC 14/100-400/42 o4a NF SC EXC3 - Art. No. 28004041

Product Description

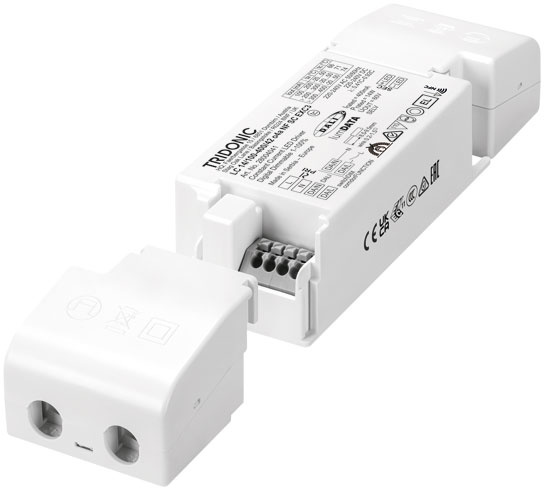

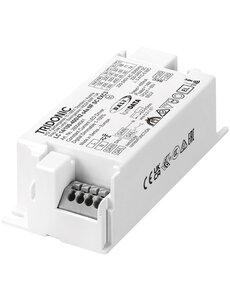

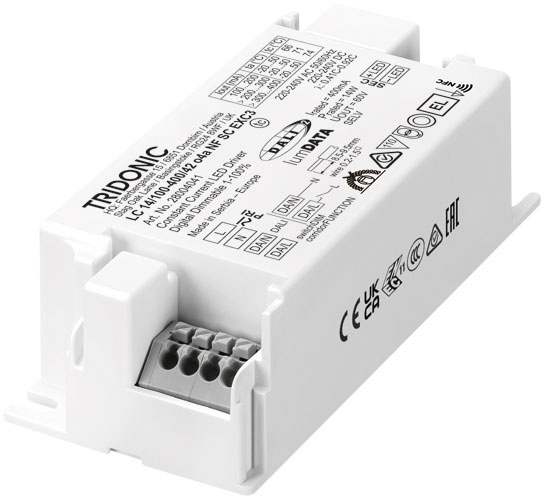

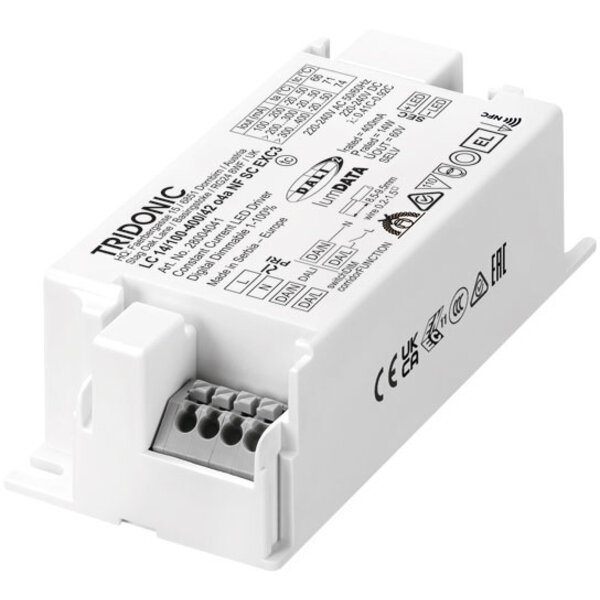

The Tridonic LC 14/100-400/42 o4a NF SC EXC3 is a compact constant current LED driver with NFC and DALI-2 technology. The output current is adjustable from 100-400 mA, with a dimming range of 1-100%.

Technical Specifications

Type: Constant Current LED Driver
Input Voltage: 220-240 V AC
AC Voltage Range: 198-264 V
DC Voltage Range: 176-280 V
Frequency: 0 / 50 / 60 Hz
Max. Output Current: 100-400 mA (adjustable via NFC or DALI)
Max. Output Power: 14 W
Efficiency: Up to 83%
Protection Class: IP20
Nominal Lifetime: Up to 100,000 hours
Housing: Polycarbonate, white
Standby Power Consumption: < 0.35 W
Overvoltage Protection: 320 V AC, 48 hours
Max. Output Voltage (U-OUT): 60 V
Inrush Current (Peak / Duration): 2.71 A / 38 µs
Power Factor (λ): 0.32 – 0.92
Total Harmonic Distortion (THD): <10%
Switchover Time AC/DC: < 0.8 s
Start-up Time (AC Mode): < 0.7 s
Max. Casing Temperature (tc): 74°C

Features and Benefits

Adjustable output current via NFC or DALI
Suitable for protection class I and II luminaires
Protection against overheating, short circuit, and overload
Low standby power consumption (< 0.35 W)
Suitable for emergency lighting systems according to EN 50172
Terminal blocks: 45° push terminals
Compact design for versatile applications

Applications

Ideal for downlights, spotlights, and decorative lighting applications.
