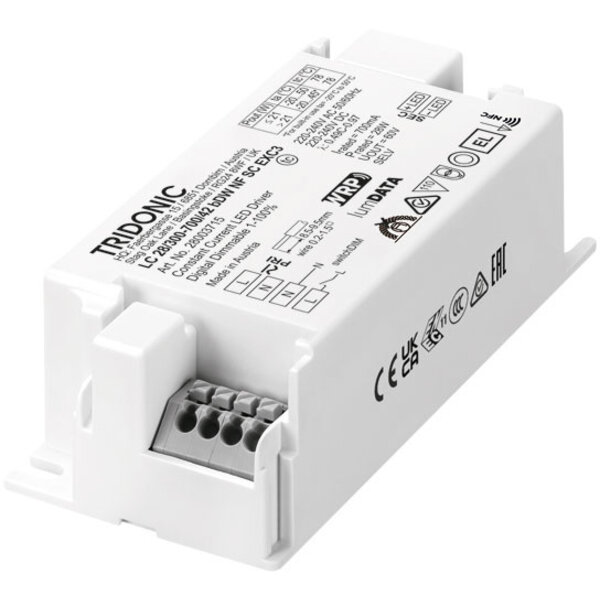

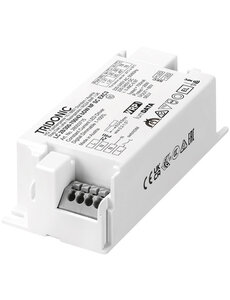

Casambi Ready LED driver 230V input 300–700mA CC

Name: Tridonic Casambi Ready LED driver 230V input 300–700mA CC
Brand: Tridonic
Price: 79.54 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€79,54 Excl. tax €159,08 Excl. tax
€96,24 Incl. tax €192,49 Incl. tax. Out of stock, but available

Unit price: €79,54 / Piece

Casambi Ready LED driver, adjustable current 300-700 mA via NFC. 28 W max., dimming 1-100%. Efficiency up to 85%, IP20, compatible with lumDATA and wireless networks. Read more

Specifications

Brand:

Tridonic

Housing:

Surface-mounted housing

Input voltage:

230Vac

DALI Type:

basicDIM Wireless

DALI-2 certified:

Article number:

28003715

EAN:

9006210757308

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

LC 28/300-700/42 bDW NF SC EXC3 - Art.nr. 28003715

Product Description

This Casambi Ready LED driver offers an adjustable current between 300-700 mA via NFC. It has a maximum output of 28 W and a dimming range of 1-100%. With an efficiency of up to 85% and IP20 protection, it is ideal for energy-efficient lighting applications.

Key Features

Casambi Ready wireless integration
Adjustable current (300-700 mA) via NFC
Dimming range from 1-100% (min. 5 mA)
Efficiency up to 85%
Maximum power: 28 W
IP20 protection class
Compatible with lumDATA (energy management and maintenance)
5-year warranty

Technical Specifications

Feature	Specification
Rated voltage	220 - 240 V
Frequency	0 / 50 / 60 Hz
Adjustable current	300 - 700 mA via NFC
Maximum power	28 W
Efficiency	Up to 85%
Protection class	IP20
Overvoltage protection	320 V AC, 48 h
Typical standby power consumption	< 0.45 W
Inrush current (peak/duration)	3.31 A / 43 µs
Power factor (λ) at full load	0.97
THD (Total Harmonic Distortion) at 230 V	< 13 %
Start-up time (DC mode)	< 0.5 s
Switch-over time AC/DC	< 0.8 s
Maximum output voltage	60 V
Radio frequency	2.4 - 2.483 GHz
Maximum radio output power	< +20 dBm
Operating temperature	-20 – 50 °C
Maximum case temperature	78 °C
Dimensions (LxWxH)	97 x 43 x 30 mm
Lifetime	Up to 100,000 hours
