Casambi Ready LED driver 230V input 100–400mA CC

Information

Datasheet

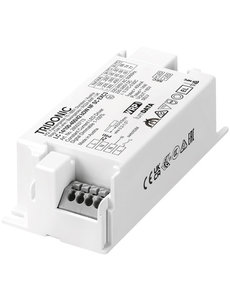

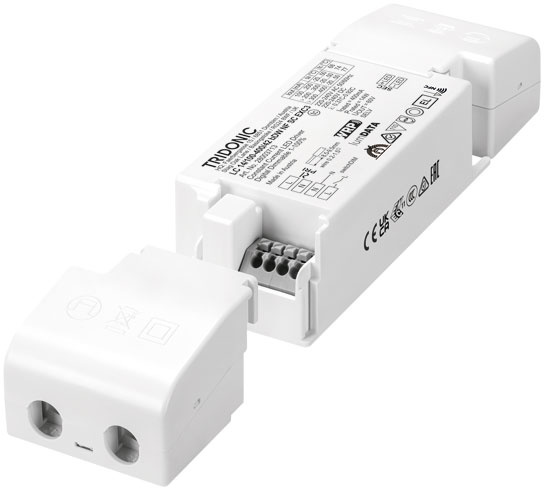

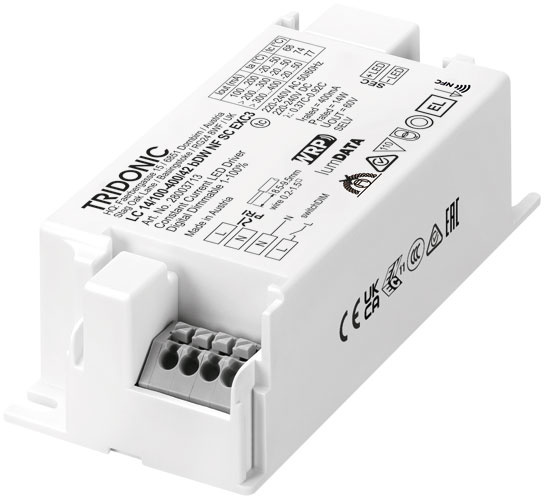

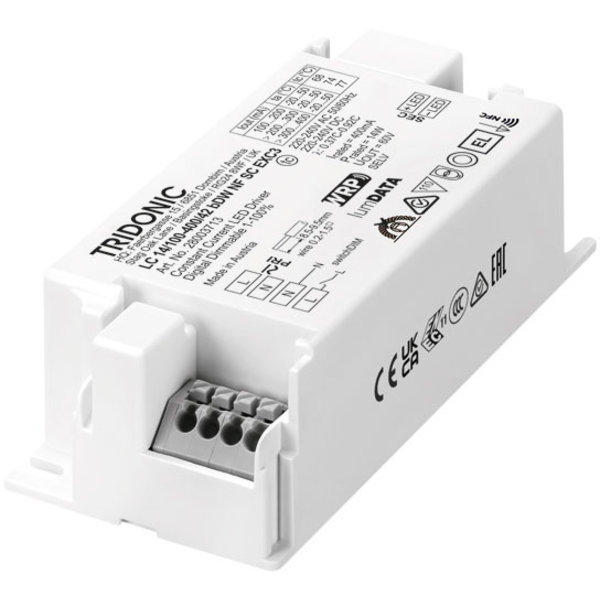

LCA 14W 100-400mA bDW NF SC EXC3 LED Driver

Art.nr. 28003713

Product Description

The LCA 14W 100-400mA bDW NF SC EXC3 is a Casambi Ready, dimmable LED driver with NFC configuration. The output current is adjustable between 100 and 400mA, and the driver supports wireless networks with up to 250 nodes. Suitable for Class I & II luminaires and emergency lighting.

Technical Specifications

• Supply Voltage: 220 – 240 V
• AC Voltage Range: 198 – 264 V
• DC Voltage Range: 176 – 280 V
• Frequency: 0 / 50 / 60 Hz
• Maximum Power: 14 W
• Efficiency: Up to 82%
• Dimming Range: 1 – 100% (min. 6 mA)
• Protection Class: IP20
• Overvoltage Protection: 320 V AC, 48 hours
• Standby Power Consumption: < 0.45 W
• Output Voltage: Max. 60 V
• Output Current: 100 – 400 mA (adjustable via NFC)
• Power Factor (λ): 0.32 – 0.92
• THD (Total Harmonic Distortion): < 10%
• Startup Time (AC): < 0.9 s
• Startup Time (DC): < 0.5 s

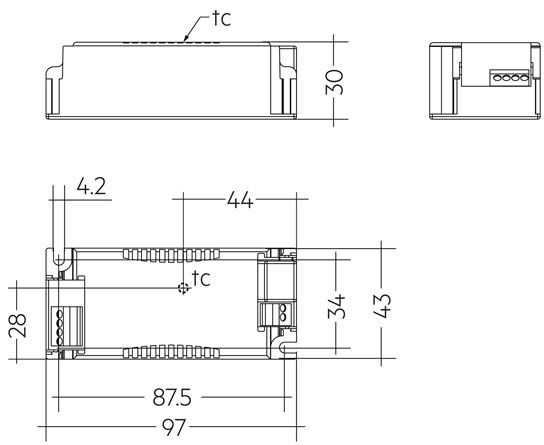

• Dimensions: 97 x 43 x 30 mm
• Weight: approx. 150 g
• Radio Frequency: 2.4 – 2.483 GHz
• Protection Features: Overtemperature, short circuit, overload, no load
• Warranty: 5 years
• Lifetime: Up to 100,000 hours

Features

This LED driver offers flexible configuration options, including NFC settings, eCLO functionality, and advanced protection against overheating and short circuits. It automatically forms a wireless communication network with up to 250 nodes.

Applications

Ideal for downlights, spotlights, and decorative lighting systems. Suitable for emergency lighting systems according to EN 50172.
