Constant Current 2-channel LED driver input 230V 350–1050mA CC

Information

Datasheet

LCA 38W 350-1050mA DT8 SR PRE Art.-No.: 28002202

Product Description

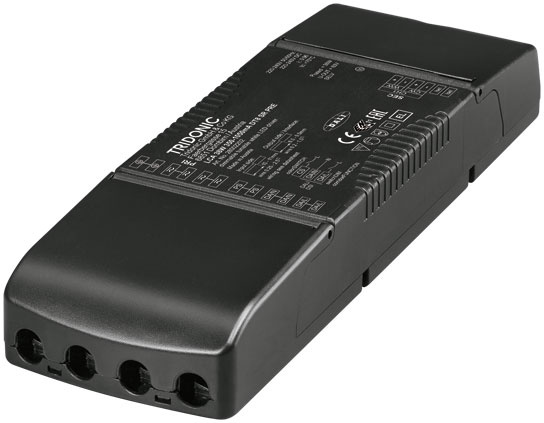

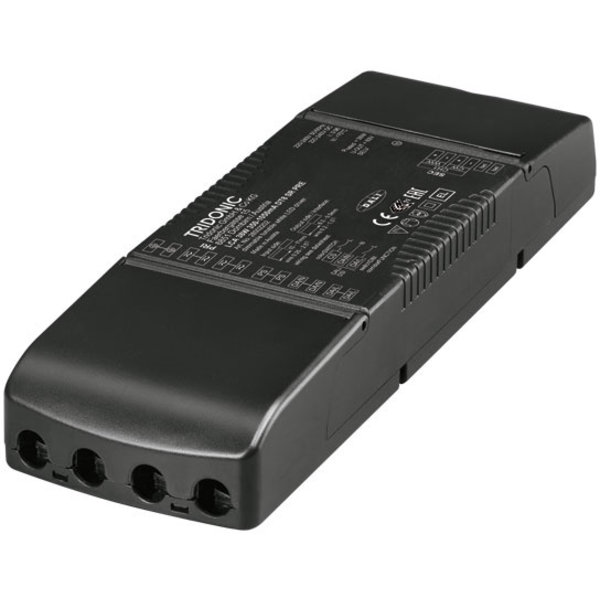

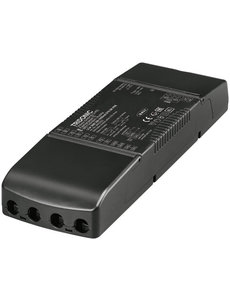

The Tridonic Constant Current 2-channel LED driver is a high-quality, dimmable driver with DALI-2 DT8 technology. With an adjustable output current from 350 to 1050 mA and a maximum output of 38 W, this driver provides an efficient and durable solution for Class I and II luminaires.

Technical Specifications

• Type: Constant Current LED Driver
• Article Number: 28002202
• Output Current: 350 - 1050 mA (adjustable via I-SELECT 2 or DALI)
• Power: Max. 38 W
• Efficiency: Up to 87%
• Dimming Range: 1 - 100%
• Nominal Lifetime: Up to 100,000 hours
• Protection Class: IP20
• Interfaces: DALI-2 DT8, DSI, switchDIM, corridorFUNCTION V2
• Dimensions: 215 mm x 70 mm x 31 mm
• Housing Material: Polycarbonate, black
• Certifications: ENEC, CE, UKCA, RoHS
• Rated Voltage: 220 - 240 V
• AC Voltage Range: 198 - 264 V
• DC Voltage Range: 176 - 288 V
• Power Factor (λ): > 0.96
• THD (Total Harmonic Distortion): < 10%
• Start-up Time (230 V, 50 Hz, full load): < 0.6 s
• Overvoltage Protection: 320 V AC (48 h)
• In-rush Current: 26.4 A / 224 µs
• Standby Power Consumption: < 0.25 W
• Surge Protection: 1 kV (L-N), 2 kV (L/N-PE)
• Max. Output Voltage: 60 V
• Color Temperature Control: 2,700 - 6,500 K

Special Features

This LED driver includes advanced features such as power-up fading, switchDIM, and color control via colourSWITCH. It supports emergency lighting systems according to EN 50172 and provides comprehensive protection against overheating, short circuits, and overload.

Applications

Ideal for indoor lighting applications in commercial and residential environments where a reliable and efficient LED driver is required.
