Constant Voltage LED driver 230Vinput 24V 150W

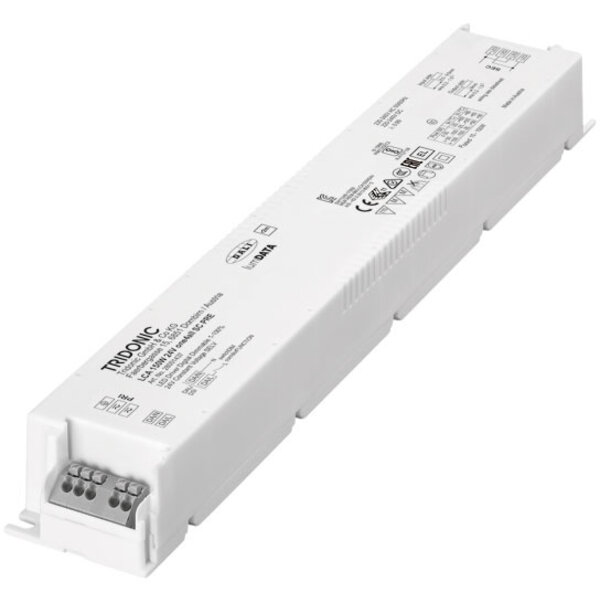

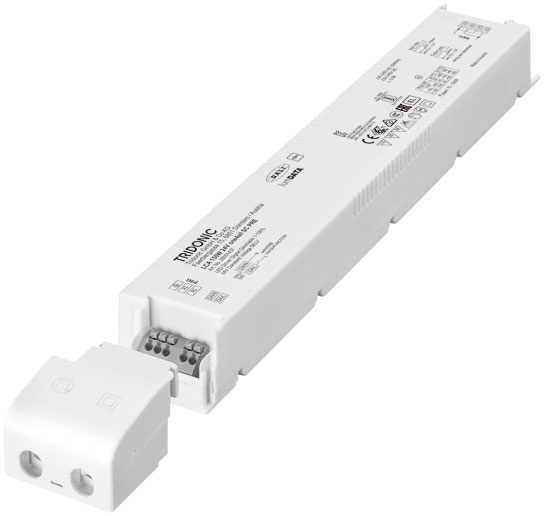

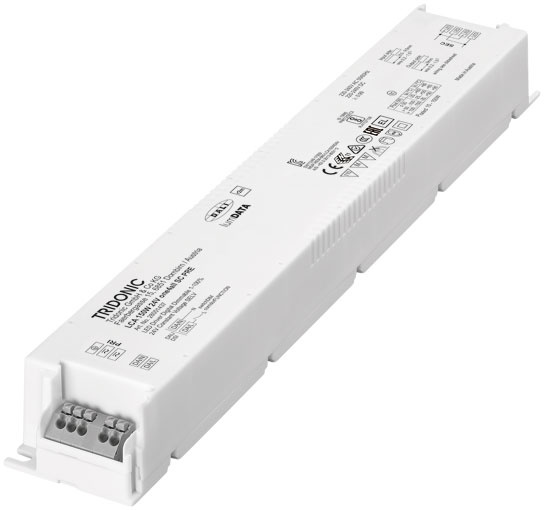

Name: Tridonic Constant Voltage LED driver 230Vinput 24V 150W
Brand: Tridonic
Price: 103.28 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€103,28 Excl. tax €206,55 Excl. tax
€124,97 Incl. tax €249,93 Incl. tax. Out of stock, but available

Unit price: €103,28 / Piece

Dimmable 24V LED driver (150W) with One4all interface and ready2mains. Suitable for flexible LED strips and emergency lighting. Efficiency up to 94%, lifetime up to 50,000 hours. Read more

Specifications

Brand:

Tridonic

Housing:

Surface-mounted housing

Input voltage:

230Vac

DALI Type:

DT6

DALI-2 certified:

Article number:

28001923

EAN:

9006210624501

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Tridonic LCA 150W 24V one4all SC PRE SP - Art. nr: 28001923

Dimmable LED driver (150W, 24V) with One4all interface and ready2mains. Suitable for flexible LED strips and emergency lighting. Efficiency up to 94% and a lifetime of up to 50,000 hours.

Key Features:

lumDATA: Luminaire data, Energy reporting, and Diagnostics & Maintenance
Dimming range from 1% to 100%
Supports One4all (DALI DT6, DSI, switchDIM, corridorFUNCTION)
ready2mains: Dimming and configuration via mains voltage
Suitable for emergency lighting according to EN 50172
Compact design (325 x 43 x 30 mm)
Protection class: IP20
Nominal lifetime: up to 50,000 hours
5-year warranty

Technical Specifications:

Feature	Value
Nominal supply voltage	220 - 240 V
AC voltage range	198 - 264 V
DC voltage range	176 - 280 V
Frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 hours
Typical power consumption (at 230V, 50Hz, full load)	710 mA
Efficiency	94%
Power factor	0.99
Max. output voltage (U-OUT)	60 V
Protection class	IP20
Lifetime	up to 50,000 hours
Dimensions (L x W x H)	325 x 43 x 30 mm

Applications:

Ceiling lighting
Facade lighting
Indirect lighting

Note:

Compatible with Tridonic LLE-FLEX ADV and EXC series. Test functionality with external light sources at low dimming levels to ensure proper operation.
