Constant Voltage LED driver 230V input 24V 100W

Information

Datasheet

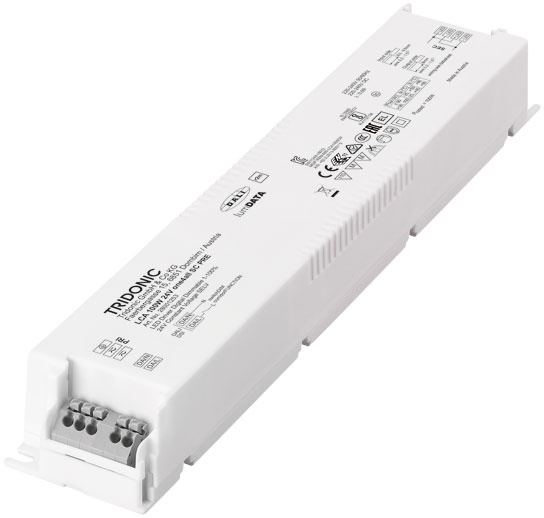

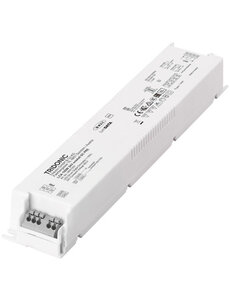

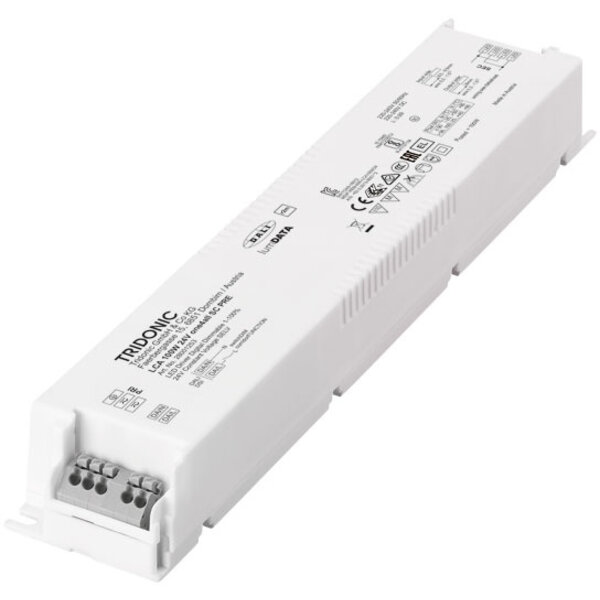

LCA 100W 24V one4all SC PRE SP Compact Drivers

Art.-No.: 28001922

Product Description

The Tridonic LCA 100W 24V one4all SC PRE SP is a high-quality, dimmable LED driver with a constant voltage of 24V. This driver supports multiple dimming options via DALI, DSI, switchDIM, and ready2mains and is suitable for emergency lighting systems according to EN 50172.

Technical Specifications

• Type: Constant Voltage LED Driver
• Output Voltage: 24V
• Maximum Power: 100W
• Dimming Range: 1 - 100%
• Nominal Lifetime: Up to 50,000 hours
• Protection Class: IP20
• Efficiency: Up to 93%
• Output Voltage Tolerance: ± 1V
• LF Voltage Ripple (< 120 Hz): ± 5%
• Power Factor (λ): 0.99
• THD (Total Harmonic Distortion): < 5.7%
• Startup Time (230V, 50Hz, full load): < 0.35 s
• AC/DC Switchover Time: < 0.3 s
• Standby Power Consumption: < 0.2W
• Interfaces: DALI-2 DT6, DSI, switchDIM, corridorFUNCTION, ready2mains
• Terminal Blocks: 45° push terminals
• Overvoltage Protection: 320V AC, 48 hours
• Max. Output Voltage (U-OUT): 60V
• PWM Frequency: ≥ 1000 Hz
• Surge Protection (L-N): 1 kV
• Surge Protection (L/N-PE): 2 kV

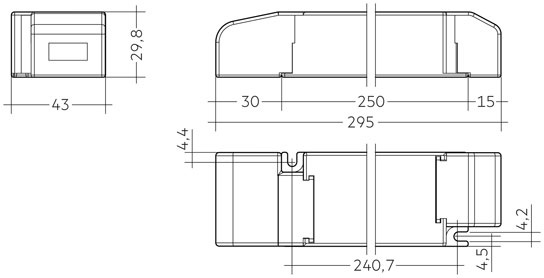

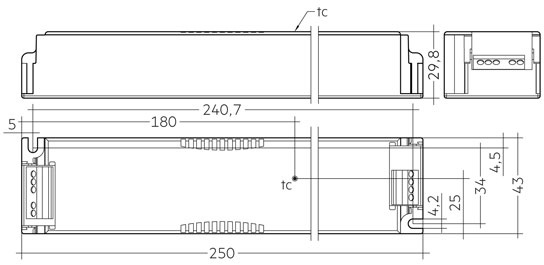

• Dimensions: 295 mm x 43 mm x 29.8 mm
• Weight: 500 g
• Certifications: ENEC, CE, UKCA, RoHS

Special Features

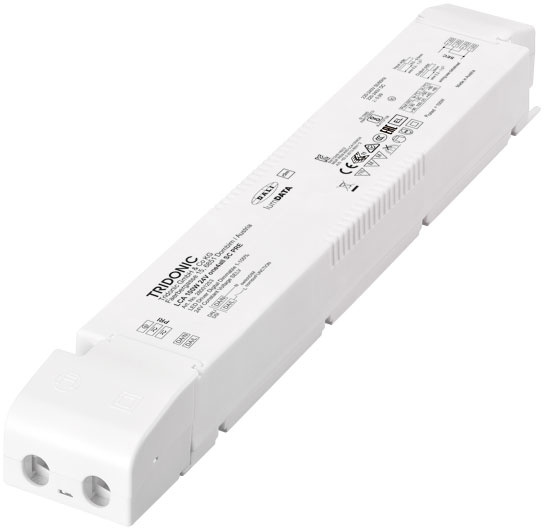

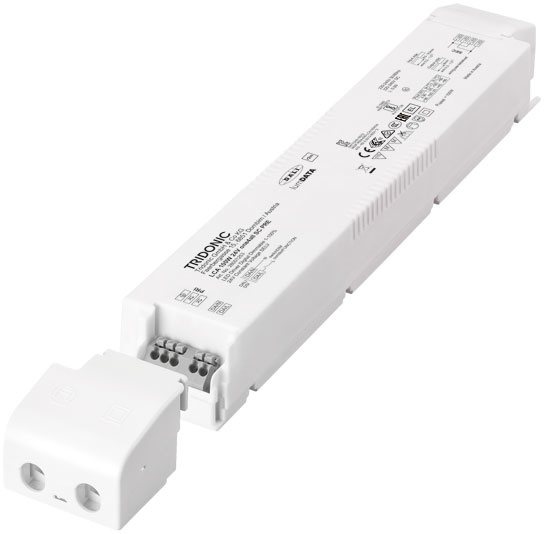

This LED driver features an integrated strain relief, a wide dimming range, and advanced protection functions against short circuits, overload, and overvoltage. It is ideal for applications such as indirect lighting, facade lighting, and ceiling integration.
