DALI XC multi-controller module | 4-way input controller

118,40 Excl. tax €236,79 Excl. tax
€143,26 Incl. tax 286,52 Incl. tax.
Out of stock, but available
Unit price: €118,40 / Piece
DALI input controller with 4 independent inputs for switches. Powered via DALI line, adjustable mode and range. Multiple modules possible on one DALI line. Read more

Specifications

Brand:
Tridonic
Housing:
built in back box
DALI-2 certified:
No
Article number:
28001716
EAN:
9006210614281
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

DALI XC Input Controller - Art.nr 28001716

Product Description

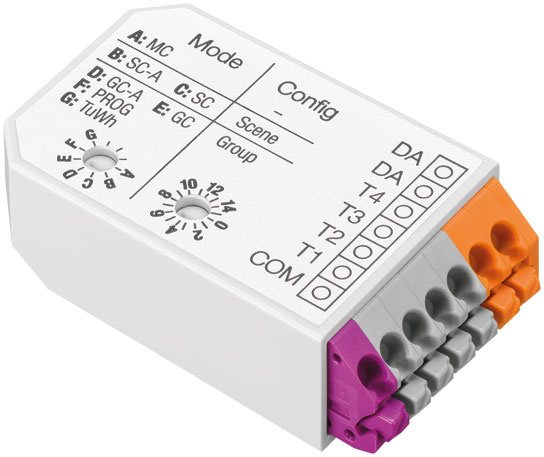

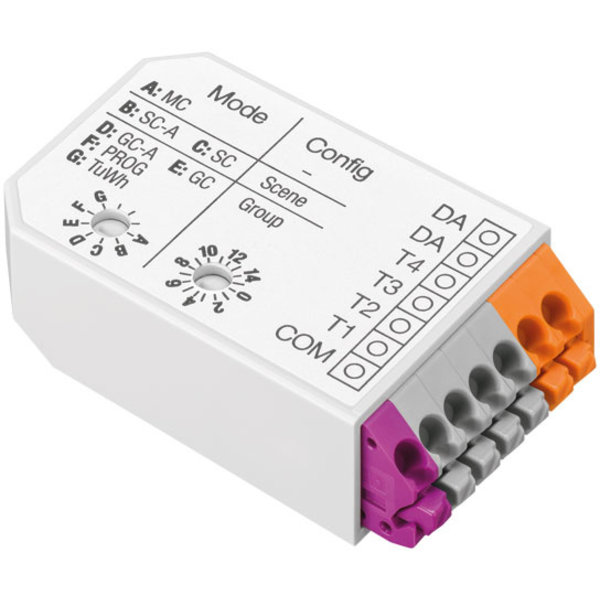

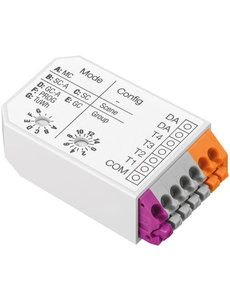

The DALI XC input controller offers four independent inputs for switches and is powered via the DALI line. With adjustable mode and range via two rotary selectors, this module is highly flexible. Multiple DALI XC modules can be used on a single DALI line.

Technical Specifications

  • Type: DALI input controller
  • Number of inputs: 4 (for switches with floating contacts)
  • Power supply: Via DALI line
  • Operating mode: Adjustable via rotary selectors

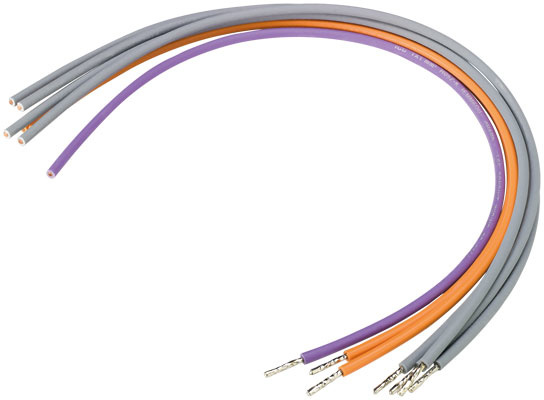

  • Connection cables: Supplied with 25 cm cables according to terminal colors
  • Multiple modules: Possible on the same DALI line
  • Maximum load: 2 mA per input
  • Compatibility: Suitable for DALI-2 and standard DALI systems
  • Dimensions: 59 x 33 x 15 mm (L x W x H)
  • Warranty: 5 years

Important Notice

Note: For proper operation, the module must be integrated into a DALI-based system. The module is compatible with the DALI standard and does not require additional power supply.
