DALI MSensor 02 Surface mounting / Ceiling mounted

157,44 Excl. tax €314,87 Excl. tax
€190,50 Incl. tax 380,99 Incl. tax.
Out of stock, but available
Unit price: €157,44 / Piece
DALI MSensor 02 5DPI 41rc/41rs with PIR sensor, light-dependent control, and presence detection. Operates via DALI, multi-master compatible, IP20, 5m mounting height. Read more
  • Buy 10 for €141,70 each and save 10%

Specifications

Brand:
Tridonic
Housing:
Surfacemounting / Ceilingmounted
DALI-2 certified:
No
Article number:
28000895
EAN:
7612696154504
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet 28000894

Datasheet 28000895

DALI MSensor 02 5DPI 41rc Art. No. 28000895 Surface Mount

DALI MSensor 02 5DPI 41rs Art. No. 28000894 Ceiling Mount

Description

The DALI MSensor 02 5DPI 41rc and 41rs are advanced sensors for lighting control and presence detection, suitable for ceiling or surface mounting. They are part of the comfortDIM system and operate via the DALI interface. Thanks to multi-master compatibility, multiple control modules can be used within the same DALI system.

Mounting Types

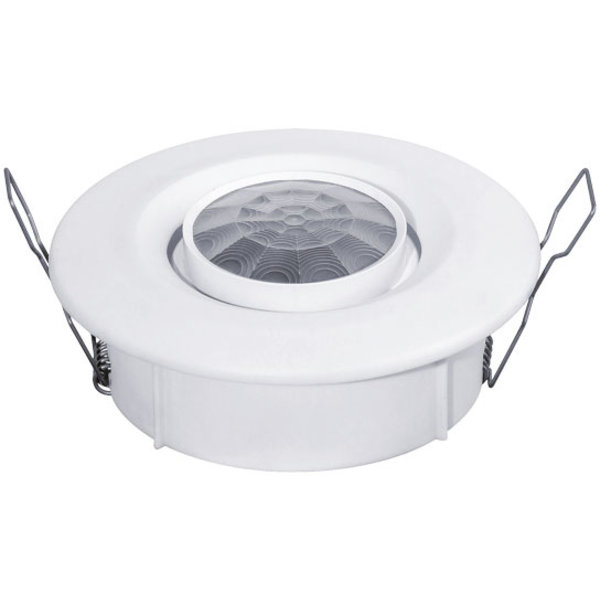

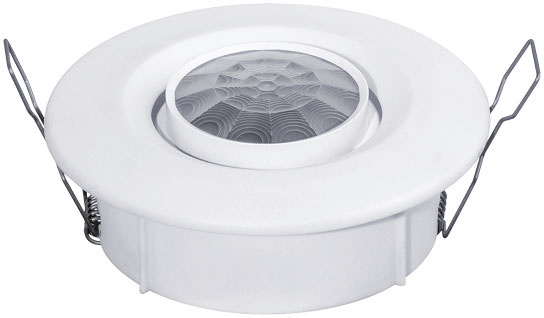

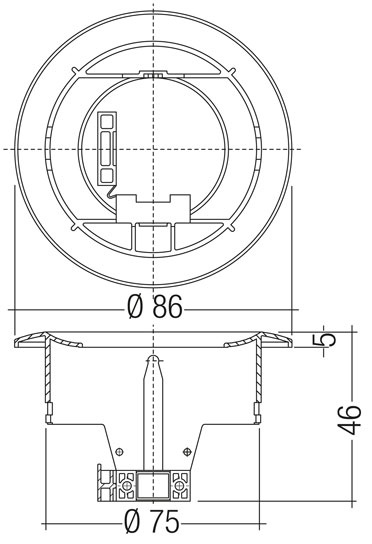

  • Ceiling Mount (28000895 - DALI MSensor 02 5DPI 41rc): This variant is directly integrated into the ceiling, providing a discreet solution for spaces where a seamless finish is desired.

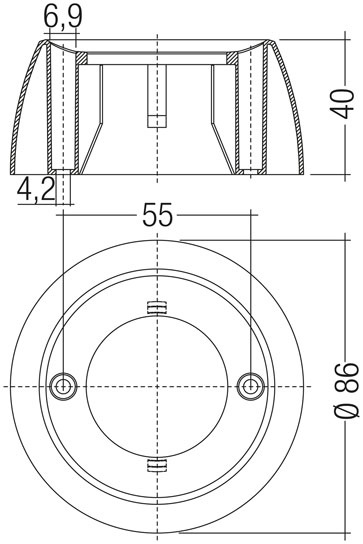

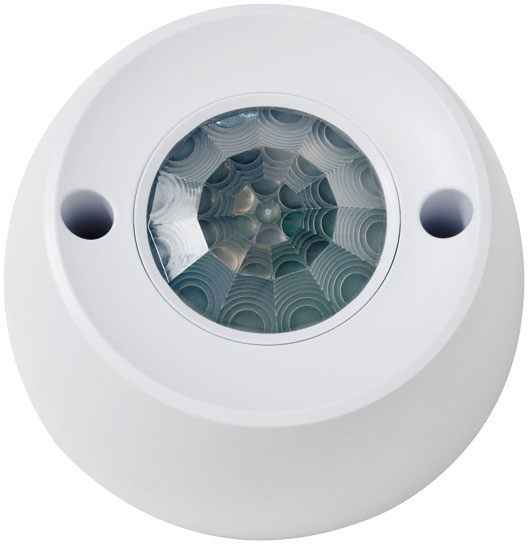

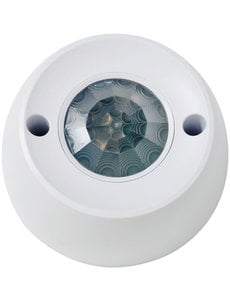

  • Surface Mount (28000894 - DALI MSensor 02 5DPI 41rs): This sensor is mounted on the ceiling or another surface, ideal for situations where recessed mounting is not possible.

Key Features

  • Part of the comfortDIM system (DALI standalone)
  • Ambient light-dependent control and presence detection
  • Simple group configuration via rotary switch
  • Multiple DALI MSensors can be used in a group
  • Remote control possible
  • Lighting control and presence detection can be deactivated
  • Multi-master compatible
  • Powered via DALI line
  • Protection class IP20
  • Warranty: 5 years

Technical Specifications

Sensor Type PIR sensor
Power Supply DALI cable
Current Consumption 6 mA
Light Measurement Detection Angle 70°
PIR Detection Angle 90°
Mounting Height 5 m
Operating Temperature 0 ... +50 °C
Storage Temperature -25 ... +55 °C
Protection Class IP20

Available Variants

  • DALI MSensor 02 5DPI 41rc (28000895): Ceiling Mount
  • DALI MSensor 02 5DPI 41rs (28000894): Surface Mount

Warranty: 5 years (conditions available at Tridonic)
