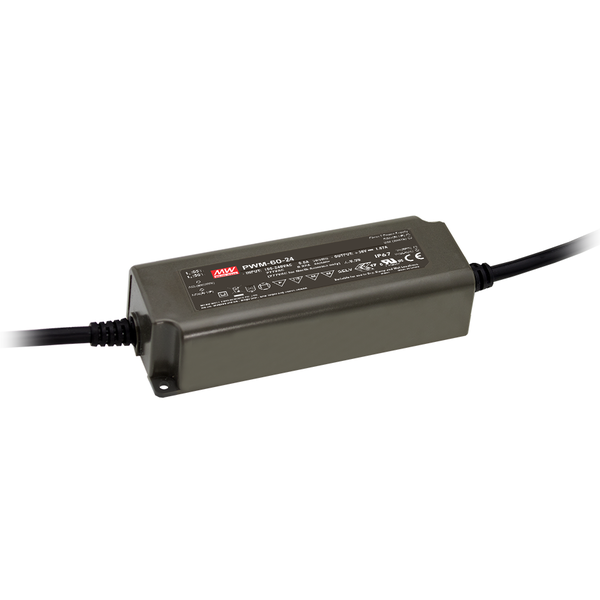

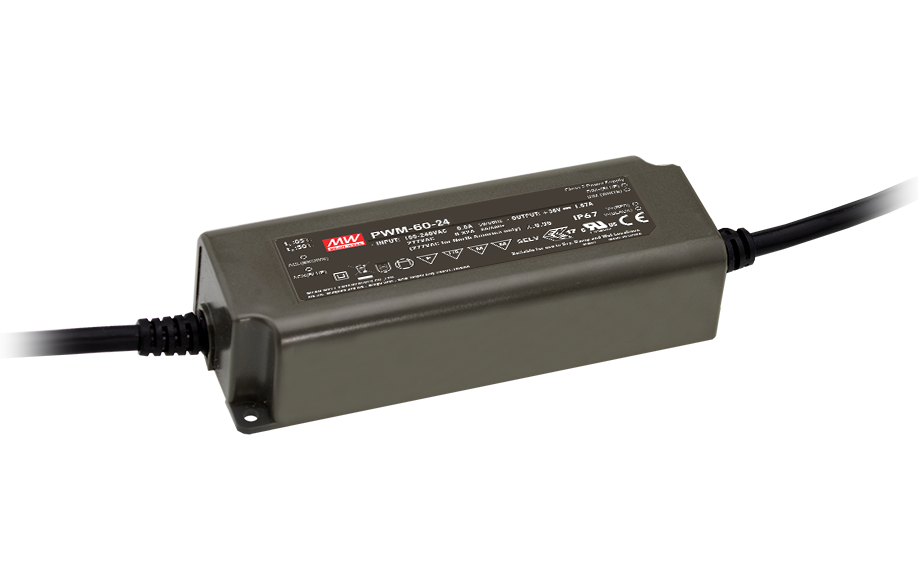

PWM-60-24DA2 AC-DC single output LED driver Constant Voltage (CV)
Specifications
Information
Datasheet
Product Descriptio PWM-60-24DA2
The PWM-60-24DA2 is an AC-DC single output LED driver with Constant Voltage (CV) technology. It offers a PWM output specifically designed for LED strips, with an output voltage of 24Vdc and a current of 2.5A. This driver supports dimming via DALI 2.0 and features an IP67 enclosure for robust protection against dust and water.
Key Features
- Constant Voltage (CV) design
- PWM output for precise light control
- Dimmable with DALI 2.0
- Universal input voltage from 90 - 305V
- IP67 enclosure for outdoor use
Available Types
- PWM-60-24DA2: 60W 24V Constant Voltage (CV)
- PWM-120-24DA2: 120W 24V Constant Voltage (CV)
- PWM-90-12DA2: 90W 12V Constant Voltage (CV)
- PWM-90-24DA2: 90W 24V Constant Voltage (CV)
- PWM-90-48DA2: 90W 48V Constant Voltage (CV)
- PWM-120-12DA2: 120W 12V Constant Voltage (CV)
Technical Specifications
| Feature | Value |
|---|---|
| Output Power | 60W |
| Output Voltage | 24V |
| Output Current | 2.5A |
| Input Voltage | 90 - 305V |
| IP Rating | IP67 |
| Dimensions | 53mm x 35mm x 150mm |
