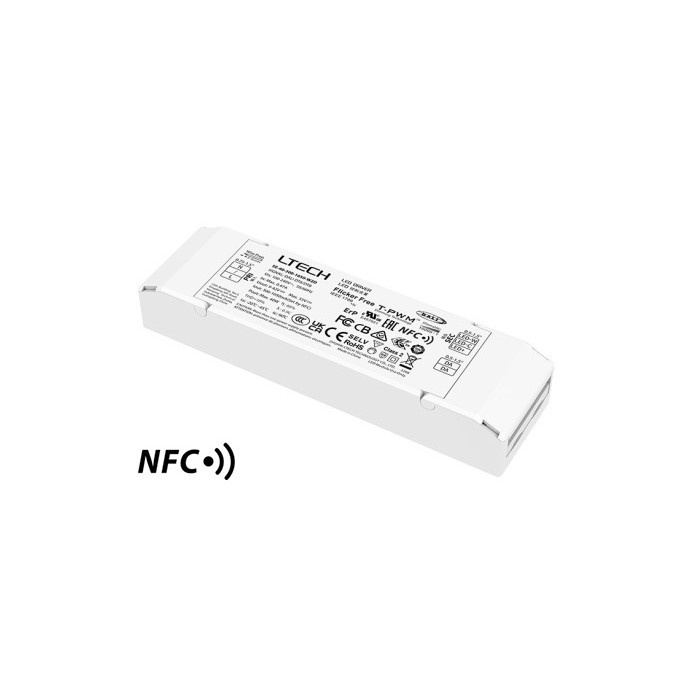

LED Driver DALI NFC 300-1050mA 40W CC 2 channels
€42,95 Excl. tax
€62,47 Excl. tax
€51,97 Incl. tax €75,59 Incl. tax. Out of stock, but available
€51,97 Incl. tax €75,59 Incl. tax. Out of stock, but available
DALI LED driver with NFC configuration, 300-1050mA, 40W. Ultra-thin design, flicker-free dimming (0.01%-100%), overload, overvoltage, and short-circuit protection. Suitable for Tunable White and DALI-2 T6/DT8. Read more
Specifications
Brand:
LTECH
Housing:
Surface-mounted housing
Input voltage:
230Vac
DALI Type:
DT6/8
DALI-2 certified:
Yes
Article number:
SE-40-300-1050-W2D
EAN:
6971379110536
SKU:
2827001
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Datasheet
Ltech SE-40-300-1050-W2D LED Driver
Part Number: SE-40-300-1050-W2D
EAN Code: 6971379110536
Product Type: Constant Current LED Driver
Product Description
The Ltech SE-40-300-1050-W2D is an advanced DALI LED driver with NFC configuration, designed for high performance and flexibility in LED lighting applications. This device offers an adjustable output current of 300-1050mA and a maximum power of 40W. With flicker-free dimming technology ranging from 0.01% to 100%, it ensures a comfortable lighting experience.
Important note: This product supports Tunable White and is compatible with DALI-2 T6/DT8. The output voltage will automatically shut off when no load is detected to prevent LED damage due to poor connections.
Technical Specifications
General
| Length | 142 mm |
|---|---|
| Width | 40 mm |
| Height | 23 mm |
| Housing Color | White |
| Housing Material | V0 flame-retardant polycarbonate |
| Mounting | Surface-mounted |
| Weight | 175 g |
| IP Rating | IP20 (indoor use only) |
Electrical Specifications
| Input Voltage | 100 ~ 240V AC |
|---|---|
| Output Voltage | 9 ~ 42V DC |
| Output Current | 300 ~ 1050mA (adjustable in 1mA steps) |
| Output Power | 2.7 ~ 40W |
| Power Factor | ≥ 0.90 at 230V AC |
| Efficiency | 88% |
| Input Frequency | 50 ~ 60Hz |
| Overvoltage Protection | L-N: 2kV |
| Short Circuit Protection | Automatic protection and recovery |
| Overload Protection | Protection when load exceeds 102% |
Lighting & Dimming
| Color Range | Tunable White |
|---|---|
| Dimming Technology | T-PWM™ (flicker-free, down to 0.01%) |
| Dimming Mode | PWM-CC |
| Dimming Protocol | DALI |
| Dimming Range | 0 ~ 100% |
Environmental & Safety
| Operating Temperature | -20 ~ +45°C |
|---|---|
| Storage Temperature | -40 ~ +80°C |
| Relative Humidity | 20 ~ 95% (non-condensing) |
| Service Life | 100,000 hours |
| Certifications | CE, ENEC, UKCA, CB, TUV |
| Warranty | 5 years |
Important Notes
- Suitable for indoor Class I/II/III light fixtures.
- Supports DALI-2 T6/DT8 and NFC configuration via the app.
- Compliant with EU ErP directive: network standby < 0.5W.
- If no load is detected, the output voltage will automatically be set to 0V.
