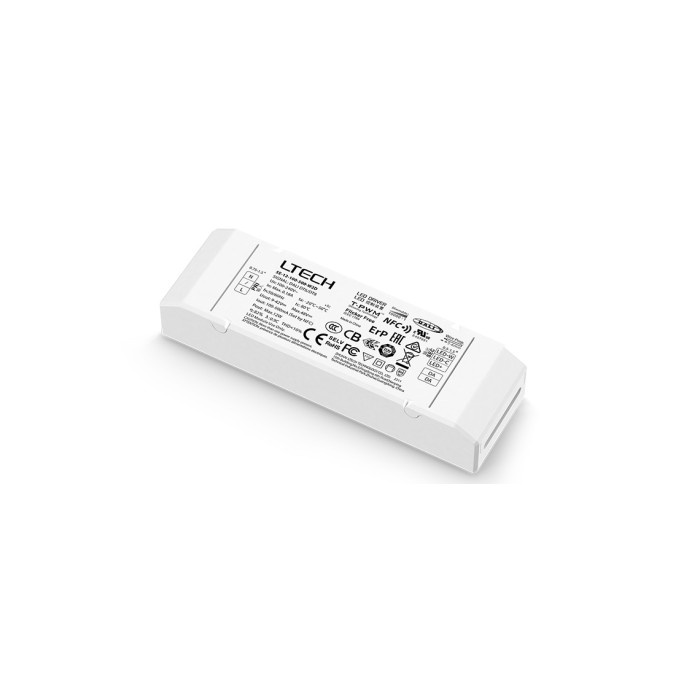

LED Driver DALI NFC 100-500mA 12W 230V Constant Current 2 Channels

Name: LTECH LED Driver DALI NFC 100-500mA 12W 230V Constant Current 2 Channels
Brand: LTECH
SKU: 2827008
Price: 33.01 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

0 Review(s)

€33,01 Excl. tax €48,01 Excl. tax
€39,94 Incl. tax €58,09 Incl. tax. Out of stock, but available

Unit price: €33,01 / Piece

LED Driver DALI NFC, 100-500mA, 12W, 230V AC, 2 channels, Constant Current, Tunable White, 82% efficiency, dimmable 0-100%, IP20, CE certified, for indoor use. Read more

Specifications

Brand:

LTECH

Housing:

Surface mounted

Input voltage:

230Vac

DALI Type:

DT6 and DT8

DALI-2 certified:

Article number:

SE-12-100-500-W2D

SKU:

2827008

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

LED Driver DALI NFC 100-500mA 12W

General Description: LED Driver DALI NFC, Constant Current, 100-500mA, 12W, 230V AC, 2 channels, Tunable White. This product offers an efficiency of 82% and a dimming range of 0-100% via PWM-CC. It is CE certified and suitable for indoor use (IP20). The product features an internal power supply and provides surge protection (2kV). It is an ideal solution for driving LED applications with varying current requirements.

Technical Specifications:

Product Type: Constant Current Driver
Length: 110 mm
Width: 35 mm
Height: 20 mm
Housing Color: White
Housing Material: Plastic
Mounting: Surface mounted
Weight: 95 g
Input Voltage: 100 ~ 240V AC
Output Voltage: 9 ~ 42V DC
Max Output Current per Channel: 100-500 mA
Output Power: 0.9 ~ 12W
Efficiency: 82%
Frequency: 50 ~ 60Hz
Inrush Current: 25A @ 230VAC
Dimming Range: 0 ~ 100%, PWM-CC
Certifications: CE, ENEC, TUV
Warranty: 5 years
Protection: Anti Surge L-N: 2kV

Note: This product is designed for indoor use (IP20) and must be connected to a DALI system for full functionality. Ensure that the driver's voltage requirements match the LED application for optimal performance.
