LED Driver DALI 75W 24V 2-Channel Constant Voltage
€99,97 Incl. tax €145,41 Incl. tax. Out of stock, but available Manual
Specifications
Information
Datasheet

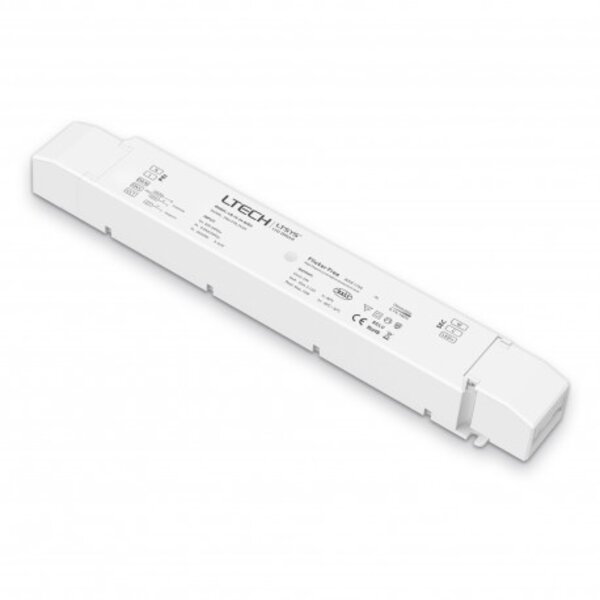

Ltech LM-75-24-G2D2 LED Driver DALI DT8 75W 24V
The Ltech LM-75-24-G2D2 is a **high-quality LED driver**, certified **DALI-2**, designed for **24V LED systems with constant voltage**. The driver features **2 channels** and uses **PWM-CV technology** for stable and efficient operation. It offers **0-100% dimming** and **Tunable White** functionality (2700K to 6500K). This driver is **protected against overload, short circuit, and overheating**, ensuring high reliability and safety for the system.
Key Features
- **DALI-2 certified LED driver** for advanced lighting control.
- **Output power:** 75W, **output voltage:** 24V DC.
- **2 channels** for easy use in multiple zones.
- **PWM-CV signal** for stable and reliable dimming control.
- **Dimming range from 0-100%**, with a minimum dimming depth of 0.1%.
- **Tunable White**: Color temperature adjustment from 2700K to 6500K.
- **Protection against short circuit, overload, and overheating**.
- **Power Factor +0.97 at full load** for stable performance.
- **Certifications:** CE, ENEC, TUV, UKCA, RoHS.
- **5-year warranty** for maximum reliability.
Technical Specifications
| Product Type | Constant Voltage LED Driver |
|---|---|
| Brand | Ltech |
| Model | LM-75-24-G2D2 |
| Dimensions (L x W x H) | 292 mm x 43 mm x 30 mm |
| Housing Material | White plastic, flame retardant (V0 rated) |
| Mounting | Surface mounting |
| PWM Frequency | ≤ 3600Hz |
| Input Voltage | 220 ~ 240V AC |
| Output Voltage | 24V DC |
| Max Output Current | 3.125A |
| Max Power | 75W |
| Efficiency | 92% |
| THD (Total Harmonic Distortion) | ≤12% at full load |
| IP Rating | IP20 (for indoor use only) |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Certifications | CE, ENEC, TUV, UKCA, RoHS |
| Warranty | 3 years |
Important Notes
- This product must be installed by a **qualified professional**.
- This product is **not waterproof** and should not be exposed to moisture or rain.
- Ensure **proper ventilation** to avoid overheating.
- Always check that the **input voltage is correct** to prevent damage.
- In case of malfunction, **do not attempt to repair the product yourself**, contact the supplier.
Packaging and Delivery
- 1x Ltech LM-75-24-G2D2 LED Driver
- Installation manual
- Mounting accessories
Conclusion
The **Ltech LM-75-24-G2D2 LED Driver** offers a reliable and **efficient solution for 24V LED systems** with **DALI-2 certification**. With its **advanced dimming and color temperature control options**, **high energy efficiency**, and **comprehensive protection mechanisms**, this driver is ideal for use in **professional and residential applications**.
