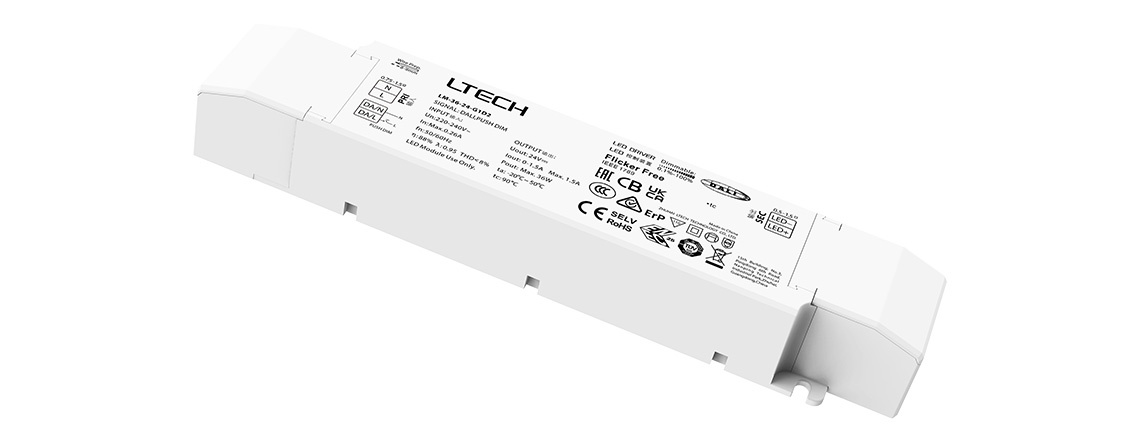

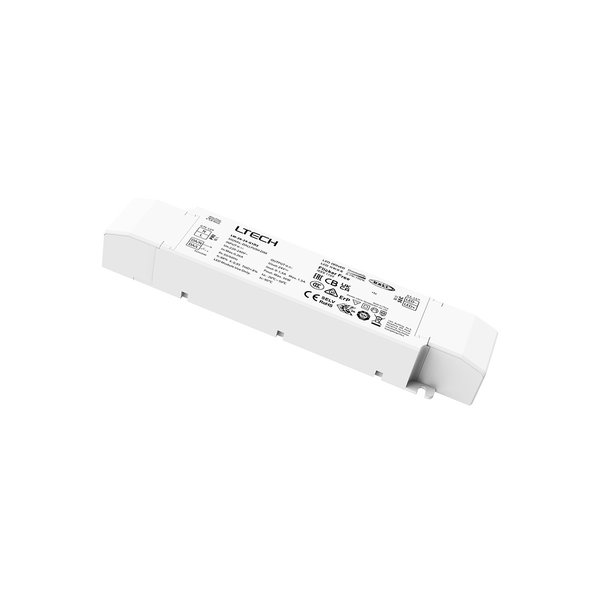

LED Driver DALI 36W 24V Constant Voltage
€54,35 Incl. tax €79,06 Incl. tax. Out of stock, but available
Specifications
Information
Datasheet
LED Driver 36W 24V CV - DALI-2 & Push DIM
Product Description
The Ltech LED Driver 36W 24V CV is a high-quality and efficient Constant Voltage driver, designed for professional LED applications. This driver supports DALI-2 and Push DIM technology, allowing precise and smooth dimming from 0-100%, with a minimum dimming depth of 0.1%. With a high efficiency of 88% and a power factor of >0.95, it delivers superior, flicker-free performance.
The driver features multiple protection mechanisms, including overload protection, short circuit protection, overheat protection, and reverse polarity protection. The automatic recovery mode ensures system stability without the need for manual reset. Its compact design and V0 flame-retardant polycarbonate housing provide safe and flexible installation options.
Key Features
- Type: Constant Voltage LED Driver
- Power: 36W
- Output Voltage: 24V DC ± 0.5V
- Max Output Current: 1.5A
- Dimmable: Yes, 0-100%, 0.1% dimming depth
- Dimming Interfaces: DALI-2, Push DIM
- Power Factor: >0.95 @ 230V AC
- Efficiency: 88%
- THD: <8% @ 230V AC
- Surge Protection: L-N: 2kV
- Standby Power Consumption: <0.5W
- Frequency: 50-60Hz
- IP Rating: IP20 (Indoor use only)
- Lifespan: Up to 50,000 hours
- Certifications: CE, TUV, UKCA, ENEC, CB
- Warranty: 5 years
Protection & Safety
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
- Overload Protection: Yes, automatic recovery
- Overheat Protection: Yes, automatic output current adjustment
- Overvoltage Protection: Yes
Electrical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 100 ~ 240V AC |
| Max Input Current | 0.26A @ 230V AC |
| Output Voltage | 24V DC ± 0.5V |
| Max Output Current | 1.5A |
| Output Power | 0 ~ 36W |
| Efficiency | 88% |
| Power Factor | >0.95 @ 230V AC |
| THD | <8% @ 230V AC |
| Standby Power Consumption | <0.5W |
Environmental Specifications
- Operating Temperature: -20°C ~ +50°C
- Storage Temperature: -40°C ~ +80°C
- Humidity: 20% ~ 95%RH, non-condensing
- Protection Class: II
Dimming Technology & Control
- Dimmable: Yes, 0-100%
- Minimum Dimming Depth: 0.1%
- Dimming Methods: DALI-2, Push DIM
- Dimming Curve: Linear
- PWM Frequency: 3600Hz
Dimensions & Weight
- Dimensions (L x W x H): 210 x 43 x 30 mm
- Weight: 200g
Conclusion
The Ltech LED Driver 36W 24V CV is a reliable and efficient driver for professional LED applications. With DALI-2 and Push DIM functionality, comprehensive protection features, and long lifespan, this driver is ideal for indoor lighting applications requiring precise and stable dimming.
