LED Driver DALI 36W 12V Constant Voltage

44,92 Excl. tax €65,34 Excl. tax
€54,35 Incl. tax 79,06 Incl. tax.
Out of stock, but available Manual
Unit price: €44,92 / Piece
LED Driver DALI 36W 12V, constant voltage, PWM-CV signal, DALI-2 certified, 0-100% dimmable, IP20, CE & ENEC certified. Protection against overload and short circuit. Read more

Specifications

Brand:
LTECH
Housing:
Surface-mounted housing
Input voltage:
230Vac
DALI Type:
-
DALI-2 certified:
Yes
Article number:
LM-36-12-G1D2
EAN:
6971379110512
SKU:
2850900
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

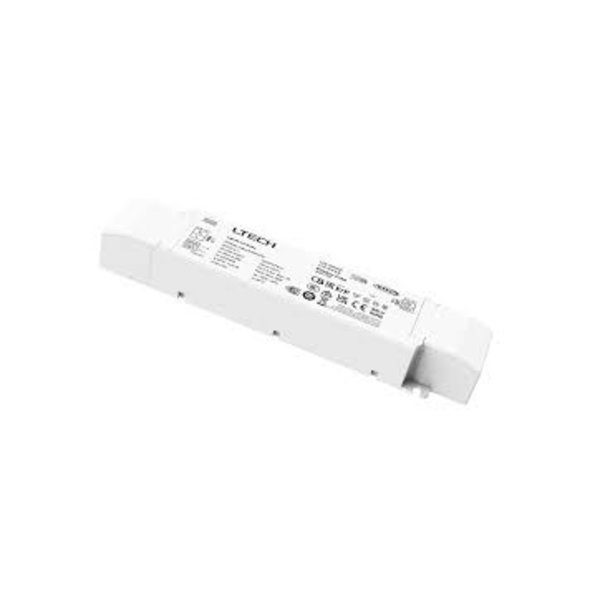

Ltech LM-36-12-G1D2 LED Driver DALI 36W 12V

The Ltech LM-36-12-G1D2 is a **high-quality LED driver** with **DALI-2 certification**, designed for **12V LED lighting** with **constant voltage**. Utilizing **PWM-CV signal technology** and a **0-100% dimming range**, this driver provides optimal lighting control. It is **IP20-rated**, suitable for **indoor use**, and includes multiple protective mechanisms.

Key Features

  • **DALI-2 certified LED driver** for precise lighting control.
  • **36W output power**, **12V DC constant voltage**.
  • **1 channel** for efficient LED power management.
  • **PWM-CV signal** for precise dimming regulation.
  • **0-100% dimmable**, minimum dimming depth of **0.1%**.
  • Protection against **overload, short circuit, and reverse polarity**.
  • **87% efficiency**, low standby loss of ≤ 0.5W.
  • **Power factor of +0.95 @ 230VAC** for stable operation.
  • **TUV, UKCA, ENEC, CB & CE certified**, compliant with RoHS and ErP.
  • **5-year warranty** for maximum reliability.

Technical Specifications

Product Type Constant Voltage LED Driver
Brand Ltech
Model LM-36-12-G1D2
Dimensions (L x W x H) 210 mm x 43 mm x 30 mm
Housing Color White
Housing Material Plastic
Mounting Surface Mounted
Weight 200 g
Input Voltage 100 ~ 240V AC
Output Voltage 12V DC
Max Output Current 3A
Output Power 0 ~ 36W
Protection Reverse polarity, overload, short circuit
IP Rating IP20 (for indoor use)
Operating Temperature -20°C to +50°C
Storage Temperature -40°C to +80°C
Efficiency 87%
Inrush Current 25A @ 230V AC
THD (Total Harmonic Distortion) 8% @ 230V AC
Power Factor +0.95 @ 230V AC
Certifications TUV, UKCA, ENEC, CB, CE, RoHS, ErP
Warranty 5 years

Important Notes

- This product must be installed by a **qualified professional**.
- This product is **not waterproof** and should not be exposed to moisture or rain.
- Ensure proper **ventilation** to prevent overheating.
- Always check the **input voltage** before powering on to avoid damage.
- In case of malfunction, **do not attempt to repair the product yourself**, contact the supplier.

Package Contents

  • 1x Ltech LM-36-12-G1D2 LED Driver
  • Installation Manual
  • Mounting Accessories

Conclusion

The **Ltech LM-36-12-G1D2 LED Driver** is a **powerful, efficient, and safe** solution for **12V LED systems** with **DALI-2 compatibility**. With its **extensive dimming options**, **high energy efficiency**, and **reliable protection features**, this driver is perfect for **professional and residential applications**.
