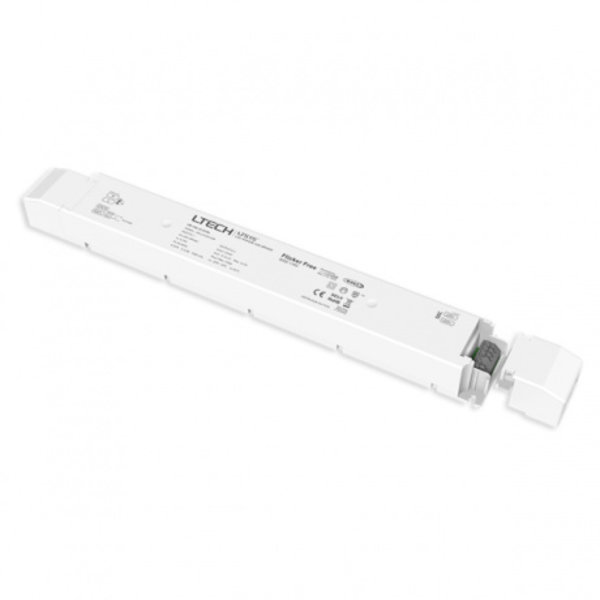

Ltech LM-150-12-G1D2 LED Driver DALI 150W 12V
The Ltech LM-150-12-G1D2 is a **high-quality LED driver**, certified for **DALI-2**, designed for **12V LED systems with constant voltage**. With its **single channel** and **PWM-CV technology**, this driver provides precise lighting control, including **0-100% dimmability**. This product meets **international safety standards** and includes multiple protection mechanisms.
Key Features
- **DALI-2 certified LED driver** for advanced lighting control.
- **Output power: 150W**, **output voltage: 12V DC**.
- **1 channel** for simple LED installations.
- **PWM-CV signal** for stable dimming control.
- **Dimming range 0-100%**, minimum dimming depth **0.1%**.
- Protection against **overload, short circuit, and overheating**.
- **High efficiency (93%)** and low standby losses (≤ 0.5W).
- **Power factor +0.98 @ 230VAC** for stable performance.
- **Certified by CE, ENEC, CB, TUV, UKCA, and RoHS**.
- **5-year warranty** for maximum reliability.
Technical Specifications
| Product Type | Constant Voltage LED Driver |
|---|---|
| Brand | Ltech |
| Model | LM-150-12-G1D2 |
| Dimensions (L x W x H) | 352 mm x 43 mm x 30 mm |
| Housing Color | White |
| Housing Material | Flame-retardant plastic (V0-rated) |
| Mounting | Surface-mounted |
| PWM Frequency | 3600Hz |
| Input Voltage | 220 ~ 240V AC |
| Output Voltage | 12V DC |
| Max Output Current | 12.5A |
| Max Power | 150W |
| IP Rating | IP20 (indoor use only) |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Efficiency | 93% |
| THD (Total Harmonic Distortion) | 6% @ 230V AC |
| Certifications | CE, ENEC, CB, TUV, UKCA, RoHS |
| Warranty | 5 years |
Important Notes
- This product must be installed by a **qualified professional**.
- This product is **not waterproof** and should not be exposed to moisture or rain.
- Ensure **proper ventilation** to prevent overheating.
- Always check that the **input voltage is correct** to prevent damage.
- In case of malfunction, **do not attempt to repair the product yourself**, contact the supplier.
Packaging and Delivery
- 1x Ltech LM-150-12-G1D2 LED Driver
- Installation manual
- Mounting accessories
Conclusion
The **Ltech LM-150-12-G1D2 LED Driver** is a **powerful, efficient, and safe** solution for **12V LED systems** with **DALI-2 compatibility**. With its **advanced dimming capabilities**, **high energy efficiency**, and **comprehensive protection mechanisms**, this driver is ideal for both **professional and residential applications**.
