LED Touch Controller DALI 2 Zone - EDA2

58,13 Excl. tax €84,55 Excl. tax
€70,34 Incl. tax 102,31 Incl. tax.
Out of stock, but available Manual
Unit price: €58,13 / Piece
LED Touch Controller with DALI-1 signal for 2 zones. Supports switching, dimming, and multiple modes. Powered by DALI bus, built-in installation, IP20. Read more

Specifications

Brand:
LTECH
DALI-2 certified:
No
Article number:
EDA2
SKU:
2268200
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

Ltech EDA2 LED Touch Controller DALI 2 Zone

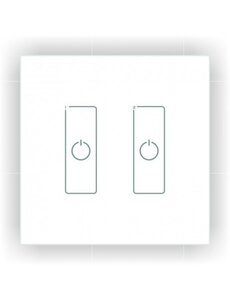

The Ltech EDA2 LED Touch Controller is an advanced DALI-1 controller designed for professional lighting control. Supporting 2 separate zones, this touch-operated controller provides an intuitive and flexible solution for modern lighting systems.

Key Features

  • ✔ Compatible with DALI-1 standard (IEC62386)
  • ✔ Supports switching, dimming, and various modes
  • ✔ Powered by the DALI bus (no extra power supply required)
  • ✔ Easy address setting via DIP switches
  • ✔ Supports scene, group, unicast, and broadcast modes
  • ✔ Compact and stylish design for built-in installation
  • ✔ LED touch control for precise lighting adjustment

Technical Specifications

  • Product Type: Controller
  • Signal: DALI-1
  • Control: Touch control
  • Zones: 2
  • Power Supply: DALI bus
  • Driver Configuration: DIP switches
  • Color Range: Single Color
  • Dimensions (LxWxH): 86 × 86 × 37 mm
  • Weight: 200 g
  • Static Current: 6mA@16V
  • Standby Current: 4mA@16V
  • Installation: Built-in
  • Housing Material: Polycarbonate (PC)
  • Housing Color: White
  • IP Rating: IP20 (indoor use only)
  • Operating Temperature: -30°C ~ +55°C
  • Certifications: CE, RoHS, RED (Radio Equipment Directive)
  • HS Code: 8537109899
  • Country of Origin: China

Important Notes

⚠ This product must be installed and adjusted by a qualified professional.

⚠ This product is not waterproof. If used outdoors, it must be installed in a waterproof enclosure.

⚠ Proper ventilation is essential to extend the product's lifespan. Do not install it in a sealed or poorly ventilated space.

⚠ Avoid installing near large metal surfaces or strong magnetic fields to prevent signal interference.

⚠ Ensure the operating voltage meets the product specifications before connecting.

⚠ Before powering on, verify that all wiring is correct to prevent short circuits or damage.

Packaging Information

  • Package Dimensions (LxWxH): 113 × 112 × 50 mm
  • Weight (Gross): 200 g

ETIM Classification

EC002924 - Controller for luminaires

Note: This manual is subject to changes without prior notice. Product functions depend on the delivered model.
