DALI MC+ /0-10V binary input
Specifications
Information

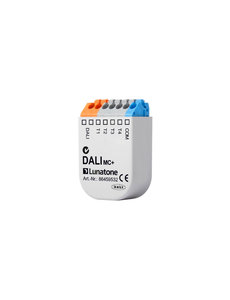

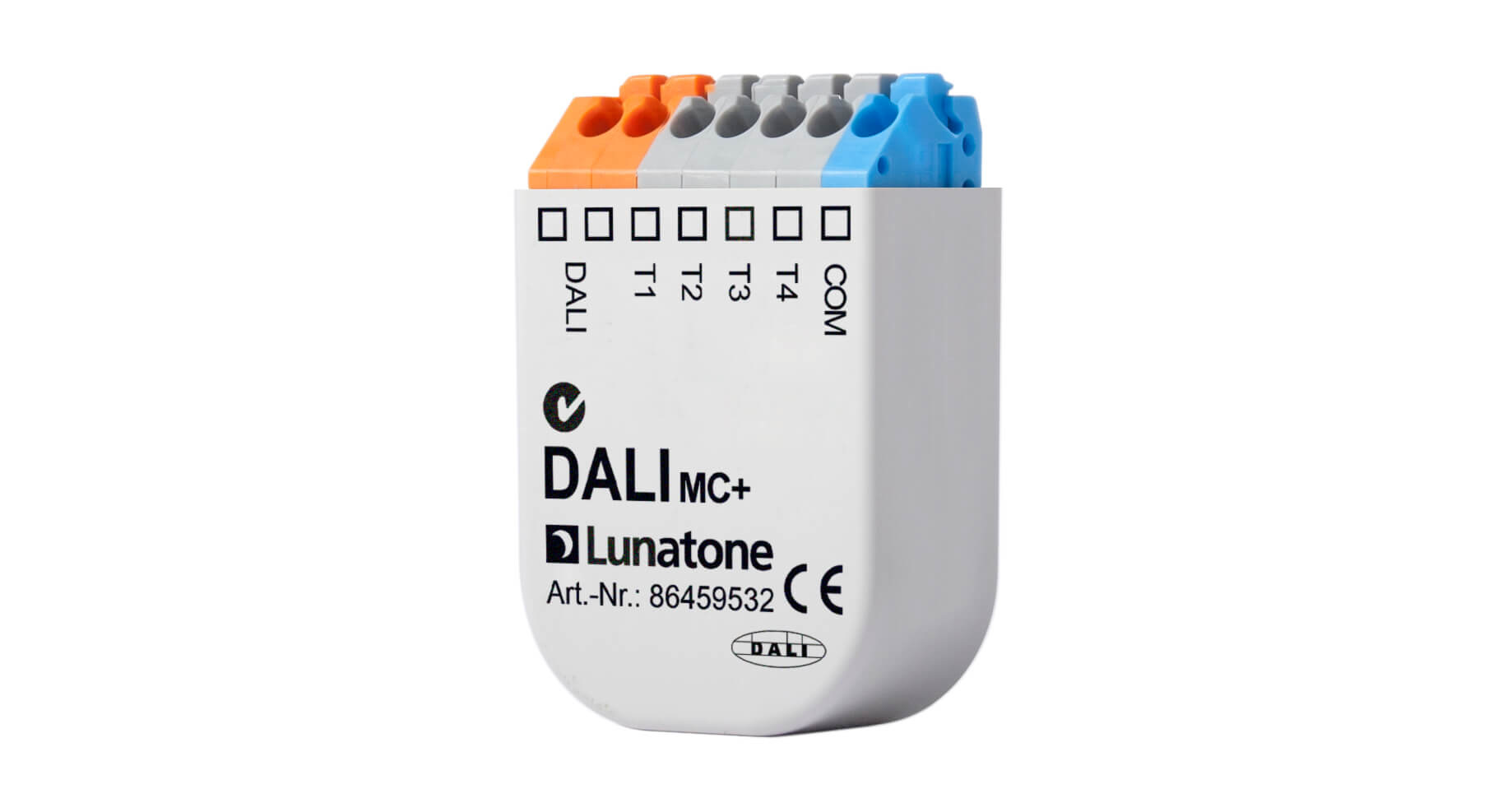

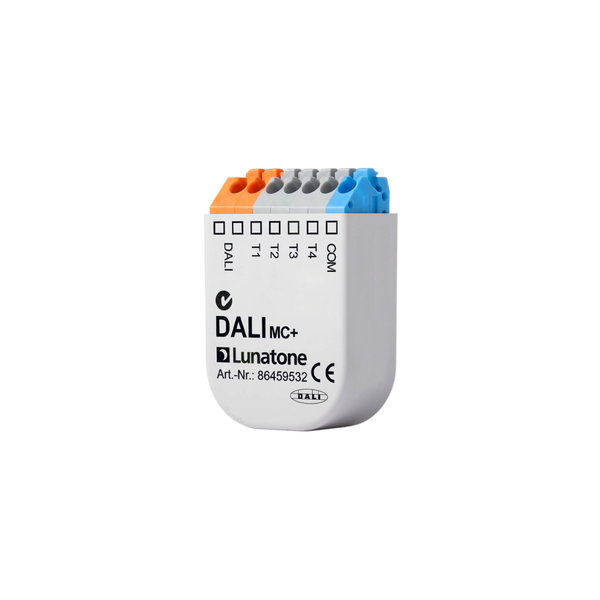

DALI MC+ / 0-10V Push Button Coupler 86459532
The DALI MC+ / 0-10V push button coupler is a versatile and flexibly configurable device designed for controlling lighting via standard potential-free switches or push buttons, as well as 0-10V signals or potentiometers. This coupler has four inputs that can be individually set with specific target addresses, button behavior, and DALI commands.
The coupler supports a wide range of functions, including dimming, switching, scene recall, and color temperature adjustment. Additionally, the device supports predefined macros, dynamic scenes, and sequencers, as well as user-defined command lists, making it an excellent choice for both simple and complex lighting installations.
With a compact design that fits behind a standard light switch in a flush-mounted box, this coupler is easy to install without taking up much space. The device is compatible with DT8, making it suitable for applications with dynamic white LED lighting.
Specifications
- Inputs: 4 x potential-free contacts (0.5m) or 0-10V
- Configuration: Flexibly configurable with target addresses and DALI commands
- Functions: Dimming, switching, scene recall, color temperature adjustment, macros, dynamic scenes
- Dimensions: Width: 28 mm, Height: 14 mm, Depth: 40 mm
- Weight: 10 grams
- Compatibility: DT8 compatible
- Brand: Lunatone
